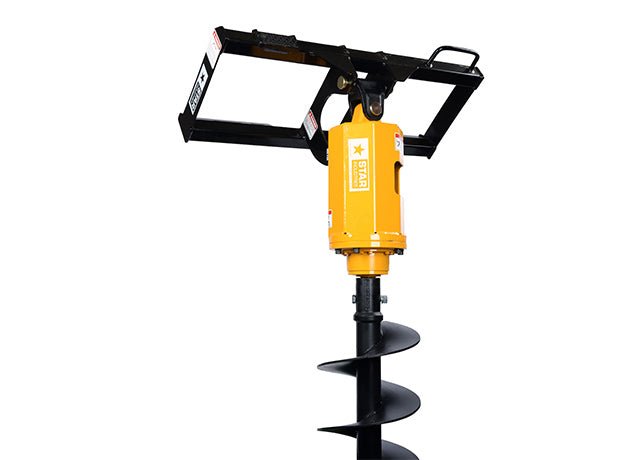

Star Industries Auger Kit
Everything You Need to Get Drilling — Even Through Solid Rock
Take on the toughest drilling jobs with the Star Industries Auger Kit, built for professionals who demand maximum power, durability, and performance. Whether you're drilling through dirt, concrete, or solid rock, this heavy-duty kit is engineered to outperform in any environment.
What’s Included in the Auger Kit:

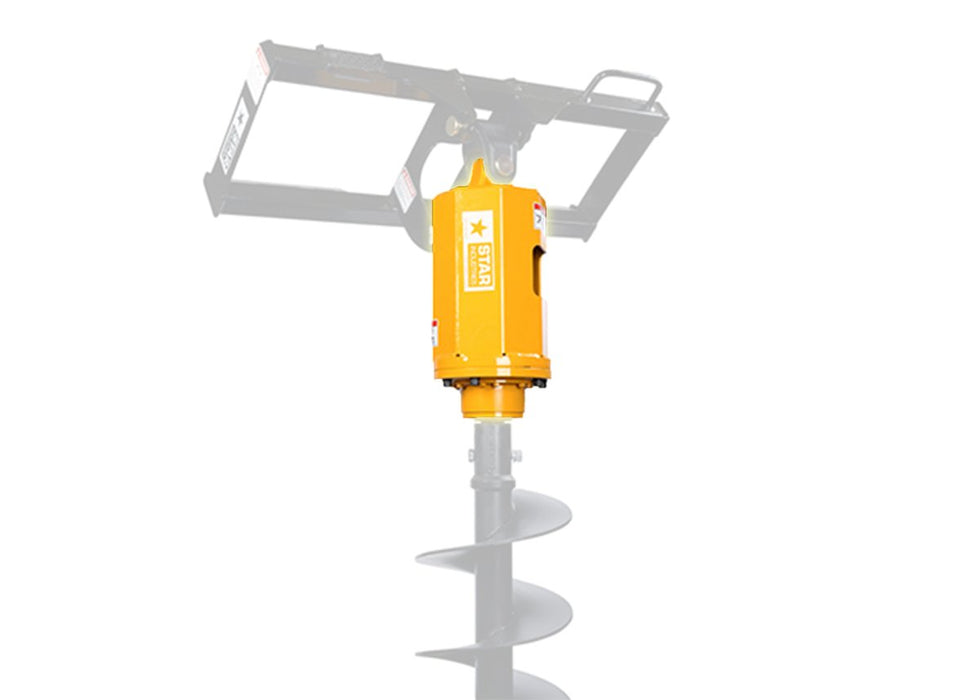

Rugged Planetary Drive Unit
-
Heavier components than any competitor for superior torque and strength
-
Delivers consistent, reliable performance in the most demanding conditions
-
Compatible with a range of augers for all soil types, including solid rock

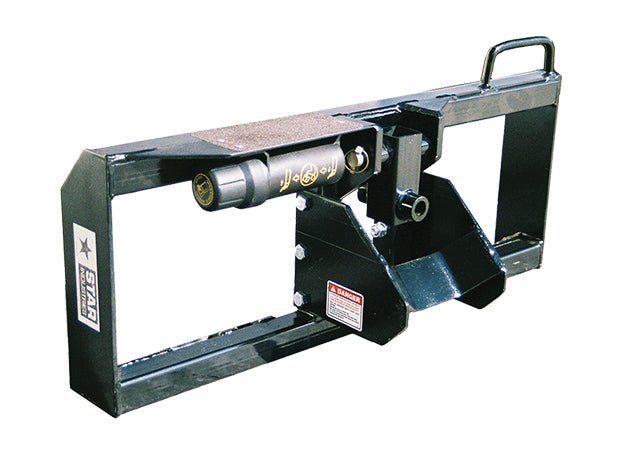

Heavy-Duty Mounting Frames
-
Constructed from heavy wall tubular steel
-

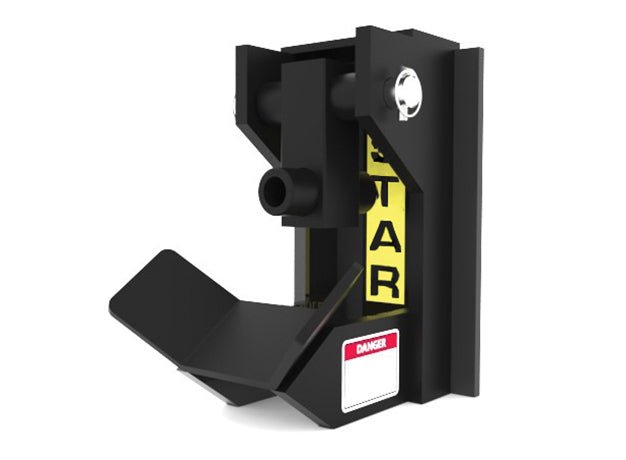

Features the largest and strongest cradle in the industry
-
Includes a weatherproof storage tube for the operations manual

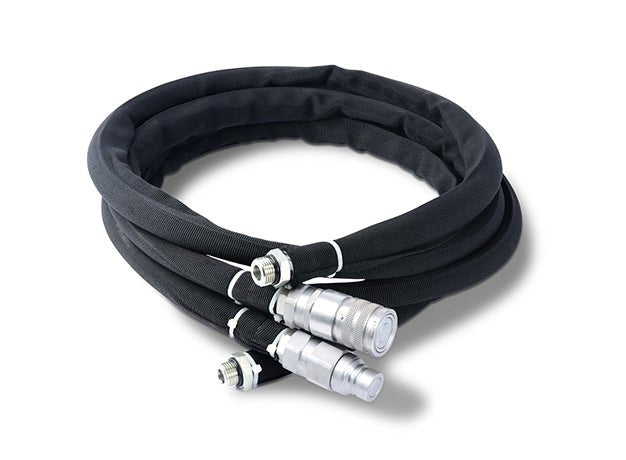

High-Durability Hose Kit
-
Two ½" x 96" hydraulic hoses in a protective sleeve
-
Equipped with flat-face quick couplers for fast, secure connections
Kit Options Available:
-

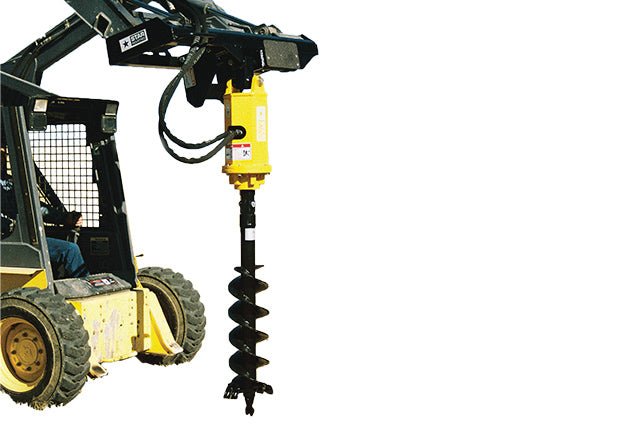

Skid Steer (SS) – Universal Skid-Steer Mount
-
Mini Skid-Steer (MSS) – Mini Mount
-
Backhoe (BH) – Backhoe Mount
Key Features:
-
Ideal for dirt, concrete, and solid rock
-

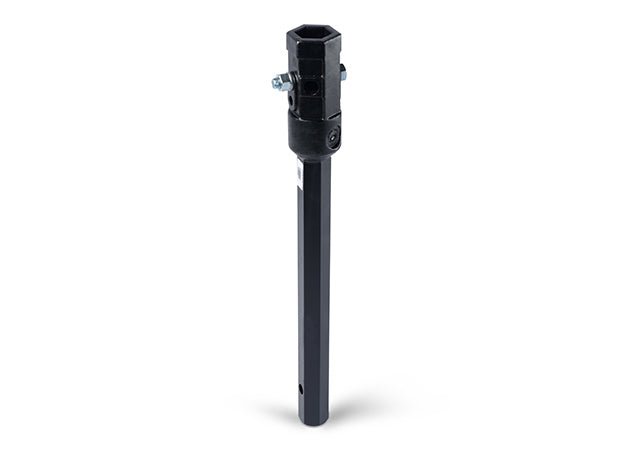

Broad range of auger types and shaft extensions
-
Extra heavy-duty components built to last
-
Mini Auger Kit available for compact machines
-
Kits are available in any combination of drive unit and frame
Power through every project with the toughest, most complete auger system on the market—Star Industries Auger Kit.
Auger Mounting Frames
| Model | For |
|---|---|
| 160QT-SS | Universal Skid-Steer Mount |
| 160QT-MSS | Mini-Skid-Steer Mount |
| 160QT-FL | Fits specified telehandler quick-tach |
| 160QT-BH | Boom tip attachment for Backhoes and Mini-Excavators |
| 160QT-BLNKB | Weld-on attachment plate |
Drive Specifications
| Attribute | 160D-1020 | 160D-1530 | 160D-2035 | 160D-615M | 160D-1020M |
|---|---|---|---|---|---|
| Min./Max. Fluid Flow Limits | 10-20gpm | 15-30gpm | 20-35gpm | 6-15gpm | 10-20gpm |
| Max. Intermittent Pressure | 3000psi | 3000psi | 3000psi | 3000psi | 3000psi |
| Max. Continuous Pressure | 3500psi | 3500psi | 3500psi | 3500psi | 3500psi |
| Max. Auger Dia. Dirt/Rock | 30 in/24 in | 36 in/36 in | 36 in/36 in | 18 in/18 in | 30 in/24 in |
Speed Output
| FLOW | 160D-1020 | 160D-1530 | 160D-2035 | 160D-615M | 160D-1020M |
|---|---|---|---|---|---|
| 5 GPM | – | – | – | 31rpm | – |
| 10 GPM | 43rpm | – | – | 61rpm | 53rpm |
| 15 GPM | 65rpm | 45rpm | – | 91rpm | 79rpm |
| 20 GPM | 86rpm | 60rpm | 50rpm | – | 105rpm |
| 25 GPM | – | 75rpm | 62rpm | – | – |
| 30 GPM | – | 90rpm | 75rpm | – | – |
| 35 GPM | – | – | 87rpm | – | – |
Torque Output
| PRESSURE | 160D-1020 | 160D-1530 | 160D-2035 | 160D-615M | 160D-1020M |
|---|---|---|---|---|---|
| 2000 PSI | 1420 ft. lbs. | 2041 ft. lbs. | 2459 ft. lbs. | 1008 ft. lbs. | 1165 ft. lbs. |
| 2500 PSI | 1776 ft. lbs. | 2550 ft. lbs. | 3075 ft. lbs. | 1260 ft. lbs. | 1456 ft. lbs. |
| 3000 PSI | 2131ft. lbs. | 3062 ft. lbs. | 3688 ft. lbs. | 1512 ft. lbs. | 1747 ft. lbs. |
| 3500 PSI | 2486 ft. lbs. | 3572 ft. lbs. | 4303 ft. lbs. | 1764 ft. lbs. | 2038 ft. lbs. |
