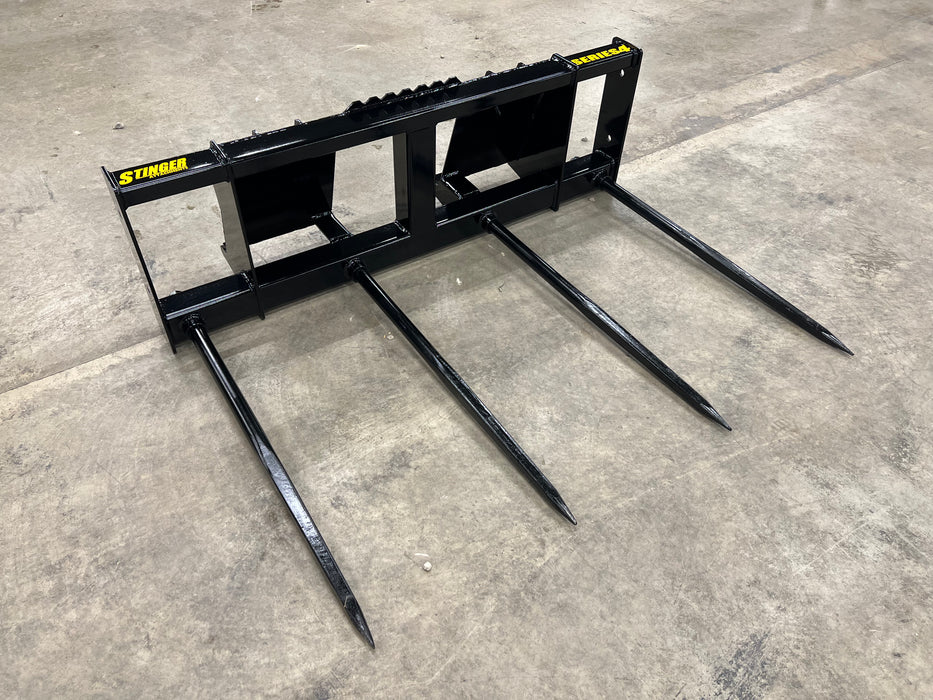

The Series 4 Bale Mover is intended to utilize utility tractors with loaders to move large numbers of round bales in minimal time. It features an outer tine spacing of 100” with a 30”/40”/30” configuration for moving large round bales up to 6’ in diameter. For moving hay from a field, loading or unloading a trailer, or into or out of a barn fast, this large round baler mover will help get the job done. The Series 4 Bale Mover is offered with a universal skid steer mount plate or many other common Global or ISO agricultural or construction mounts.
Specs & Features
- 70-degree back angle
- 4x2x1/4” Top Support tube
- 4x4x1/4” Bottom Tube
- 3/8” Gr 50 Sides plates
- Replaceable tines (Double Nut)
- Safety Step
Options
- Multiple Mount Offerings
Series 4 Tractor Bale Spear Features
This high-performing bale spear offers a four-tine design and a 14,000-pound capacity to keep your operations moving. The 61-inch distance between the outer tines can easily accommodate two large square bales. The optional bolt-on side supports provide extra stability for these heavier, bulkier loads.
Do you routinely work with different-sized bales? The availability of multiple tine lengths enables you to find the best solution for your applications — select from 39-inch, 43-inch or 49-inch options. The tines are replaceable, allowing you to make fast changes when needed.
Other valuable features include a built-in hookup you can modify to fit any tractor in your fleet. This intuitive design ensures your bale spear will fit correctly and securely on your machine. A safety step reduces the likelihood of workplace accidents while using the attachment.
