Series 4 Skid Steer Material Bucket — Maximum Capacity for the Biggest Jobs
The Series 4 Material Bucket is a robust upgrade from our Series 3, designed to deliver increased capacity and heavy-duty performance for larger skid steers and machines. Built with a ¼” Grade 50 steel shell and engineered for strength and durability, this bucket is made to withstand the toughest daily workloads on the largest equipment.

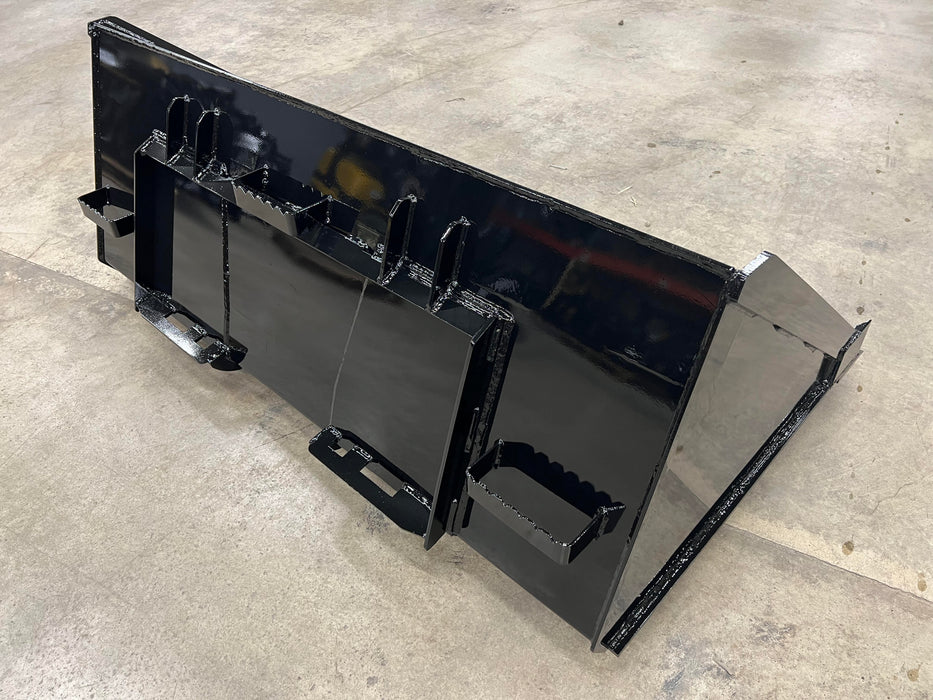

Available in five sizes ranging from 60” to 84” wide, the Series 4 comes standard with a universal skid steer mount plate — with custom mounting options available upon request. Its reinforced design includes a top channel brace and bottom radius support for added strength and easier clean out. The bucket features a 68-degree back angle, optimized for efficient roll-back and dump actions.
Key Features:
-
Constructed with ¼” Grade 50 steel shell for maximum durability
-
Deep 40” bucket increases capacity and improves visibility of cutting edge
-
Available with weld-on or bolt-on cutting edge options
-
¼” thick sides reinforced with ½” thick side braces for extra strength
-
Four-inch wide, ½” thick wear bars enhance durability and extend bucket life
-
Reinforcement tube across the top of the bucket provides added rigidity and improved visibility
-
¼” rolled insert strengthens bucket and aids in clean out
-

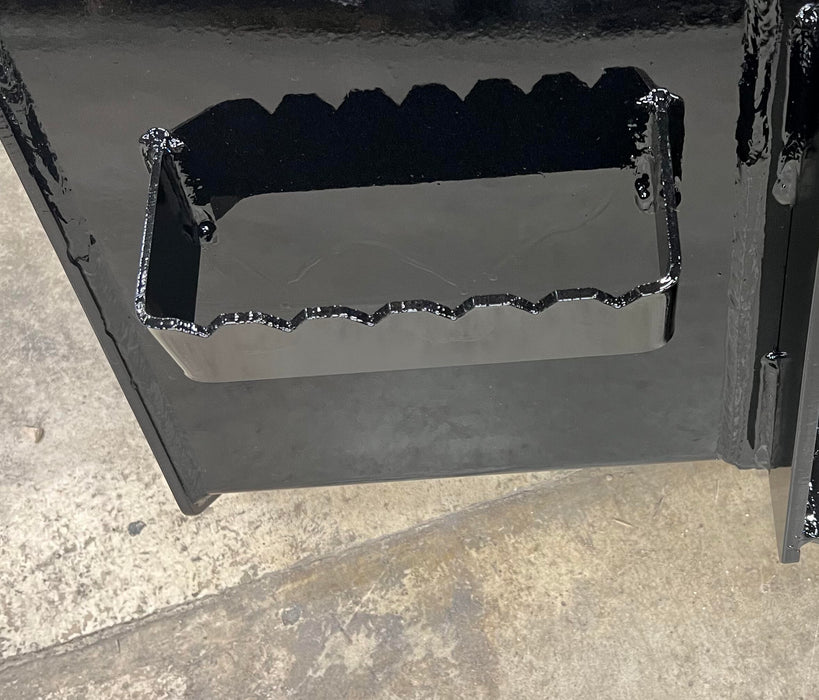

Included safety step for easy access and safer operation
Specs:
| Size | Approx. Weight (Bolt-On) | Struck Capacity (Cu. Ft.) | Heap Capacity (Cu. Ft.) | Back Angle | # of Wear Bars (½” x 4”) |
|---|---|---|---|---|---|
| 60" | 690lbs. | 17.2 | 21.5 | 68° | 4 |
| 66" | 755lbs. | 19 | 23.8 | 68° | 4 |
| 72" | 820lbs. | 20.7 | 25.9 | 68° | 4 |
| 78" | 885lbs. | 22.5 | 28 | 68° | 5 |
| 84" | 950lbs. | 24.2 | 30.3 | 68° | 5 |
This Series 4 bucket offers the perfect combination of strength, capacity, and durability, making it ideal for large-scale construction, agriculture, and industrial applications. It’s built to keep up with your biggest machines, job after job.
