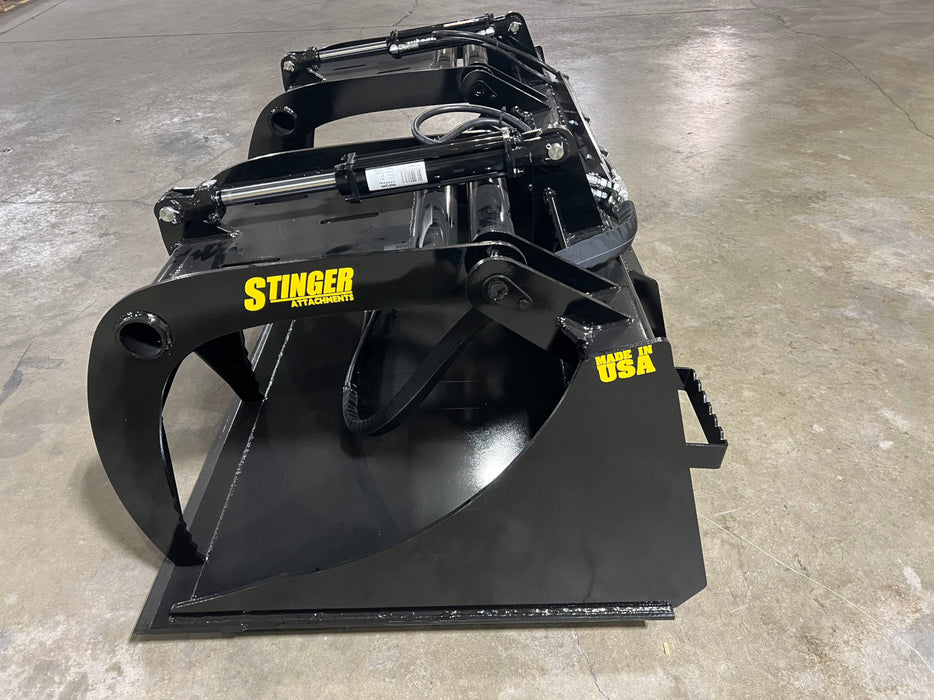

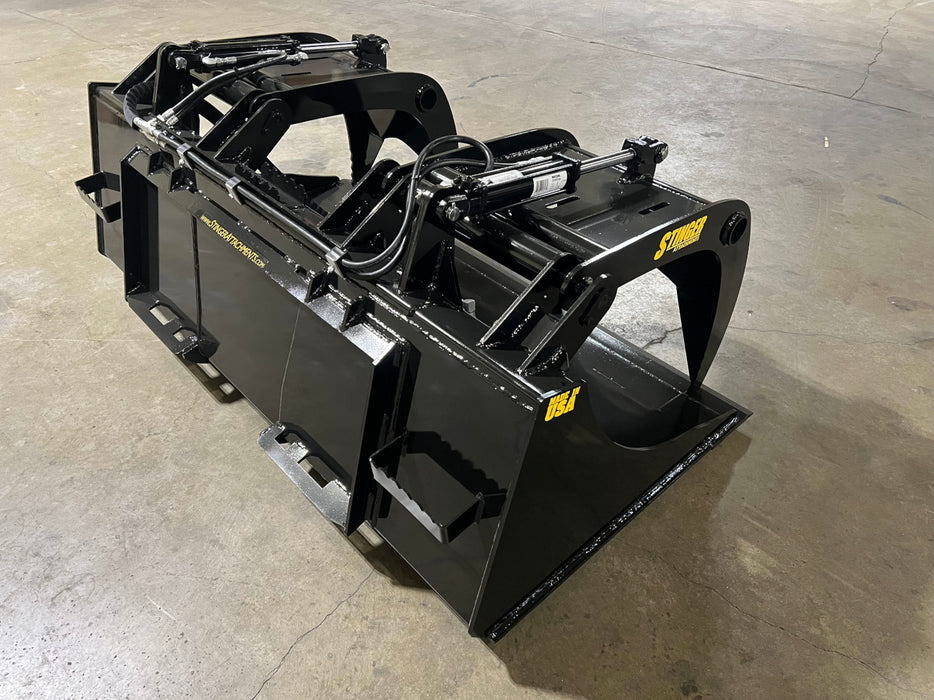

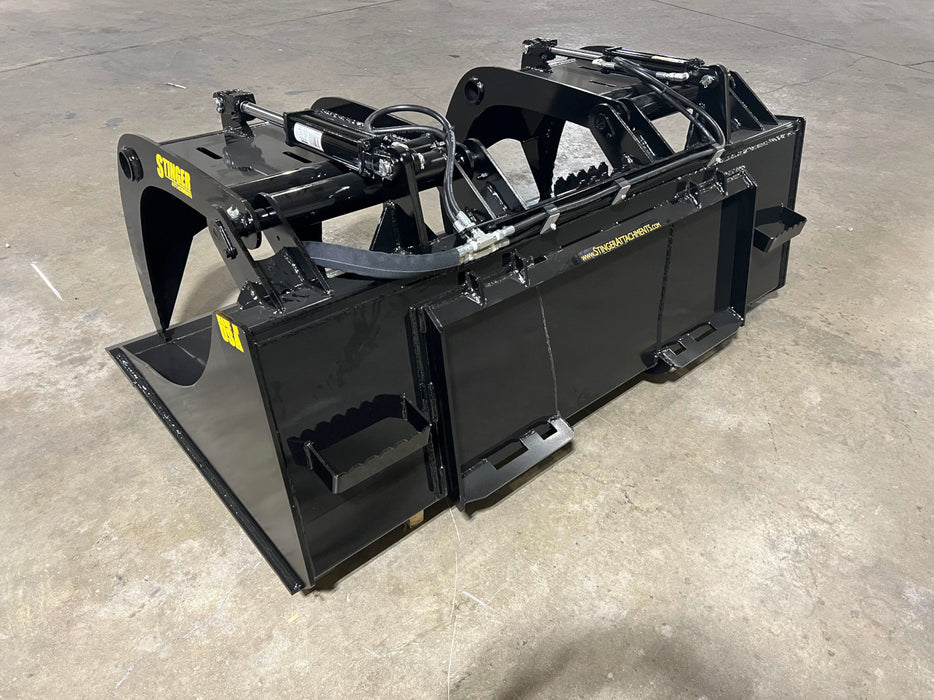

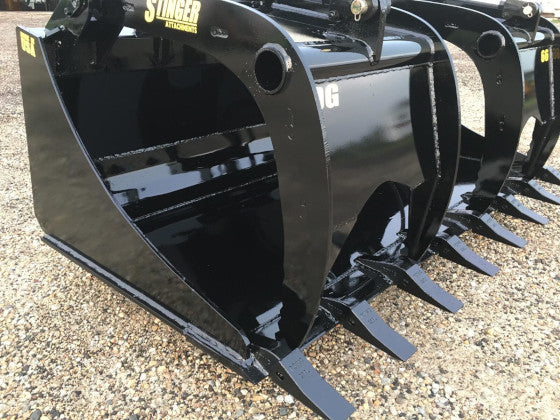

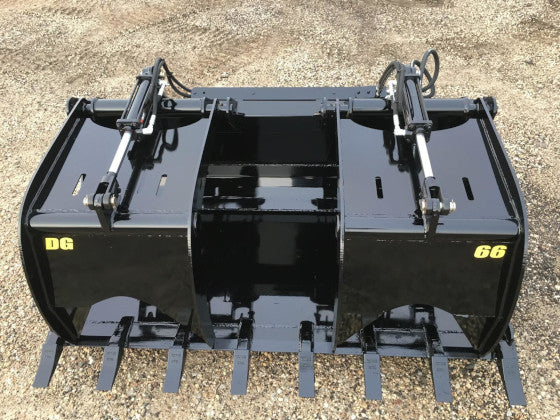

DG Series Demolition Grapple Bucket — Heavy-Duty Skid Steer Attachment Built to Last
The DG Series Demolition Grapple Bucket is a powerful and rugged attachment designed for skid steer loaders to handle the toughest demolition, construction, disaster cleanup, and heavy material handling tasks. Featuring a massive 48-inch grapple opening height, this bucket maximizes load capacity while its solid construction ensures long-lasting durability.
Constructed entirely from Grade 50 steel with reinforced structural components, this demolition grapple bucket withstands extreme working conditions and heavy-duty use. Whether you're clearing debris on a construction site or managing scrap and logs on a farm, the DG Series delivers the strength and control operators need.
Built Tough for Maximum Performance
-
Solid Bottom Bucket: Keeps material securely contained, preventing loss during transport.
-

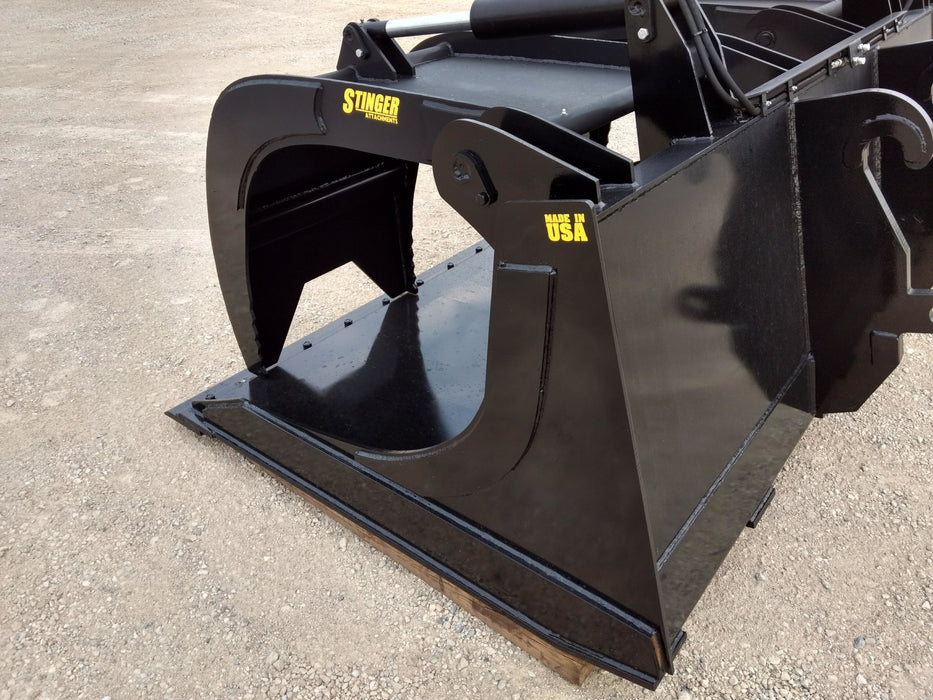

Curved End Plates: Allows clamping onto wide or irregularly shaped materials, such as logs and scrap larger than the bucket width.
-
Grade 50 Steel Construction: Heavy-duty 3/16” shell, 3/8” side plates, and 4”x4” reinforcement tubing ensure rugged durability.
-
Cut Edge: Welded ¾”x6” cut edge on ½”x5” base, with optional bolt-on edges for extended wear life.
-
Wear Bars: Four 4”-wide by ½”-thick wear bars increase bucket strength and longevity.
-
Rolled Insert: 3/16” rolled insert adds strength and facilitates material clean-out.
-
Bucket Depth: 30” deep bucket for high capacity and an unobstructed view of the cutting edge.
-
Back Angle: 75-degree back angle improves digging and loading efficiency.
Grapple Features
-

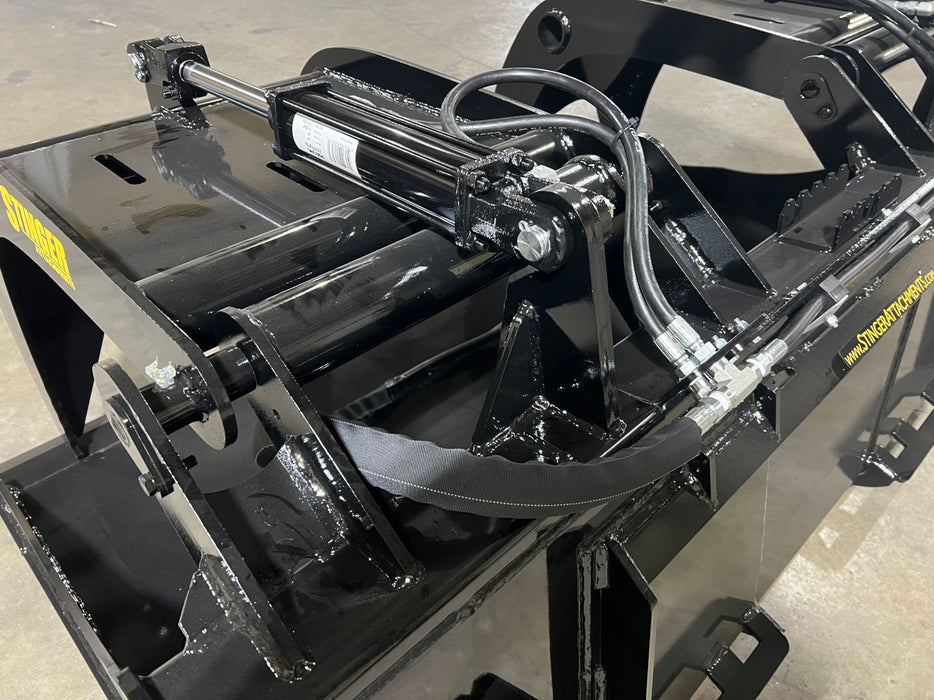

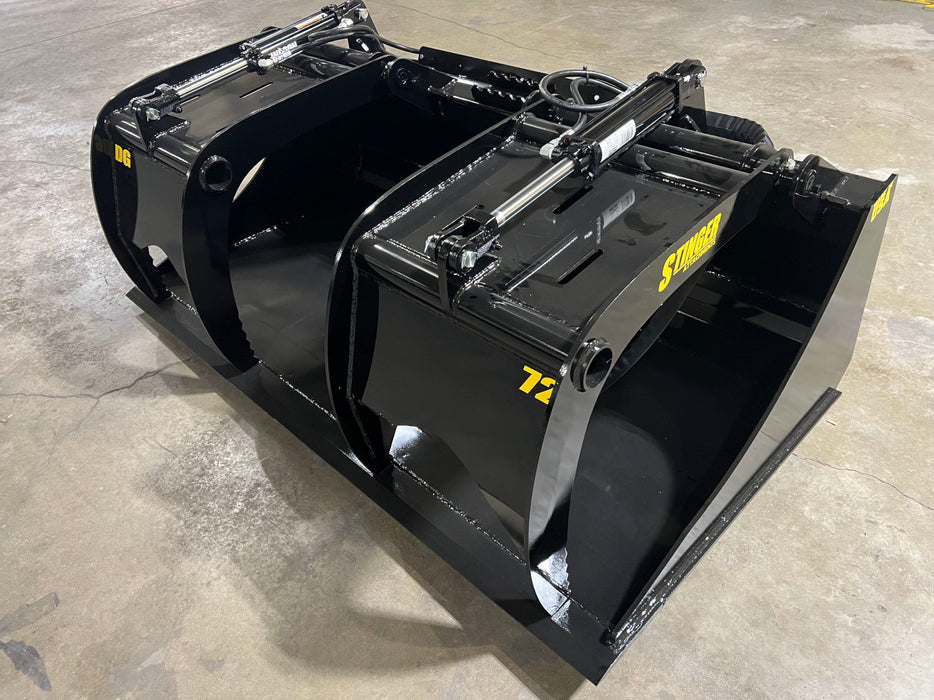

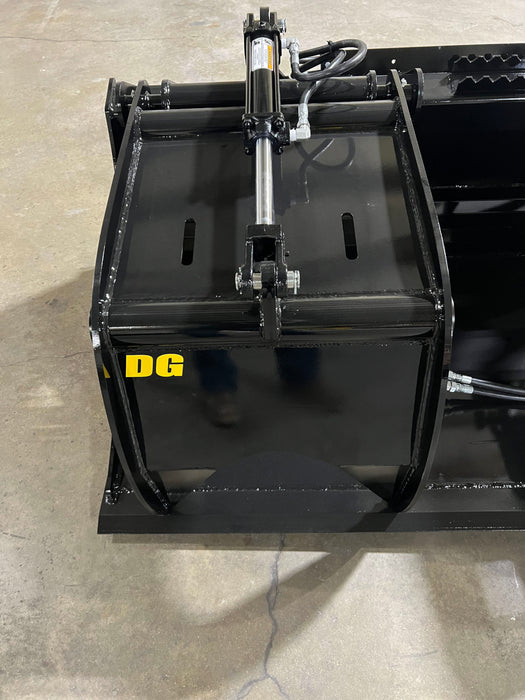

Dual Heavy-Duty Grapples: Made from 3/8” and ¼” steel, built to withstand the harshest demolition demands.
-

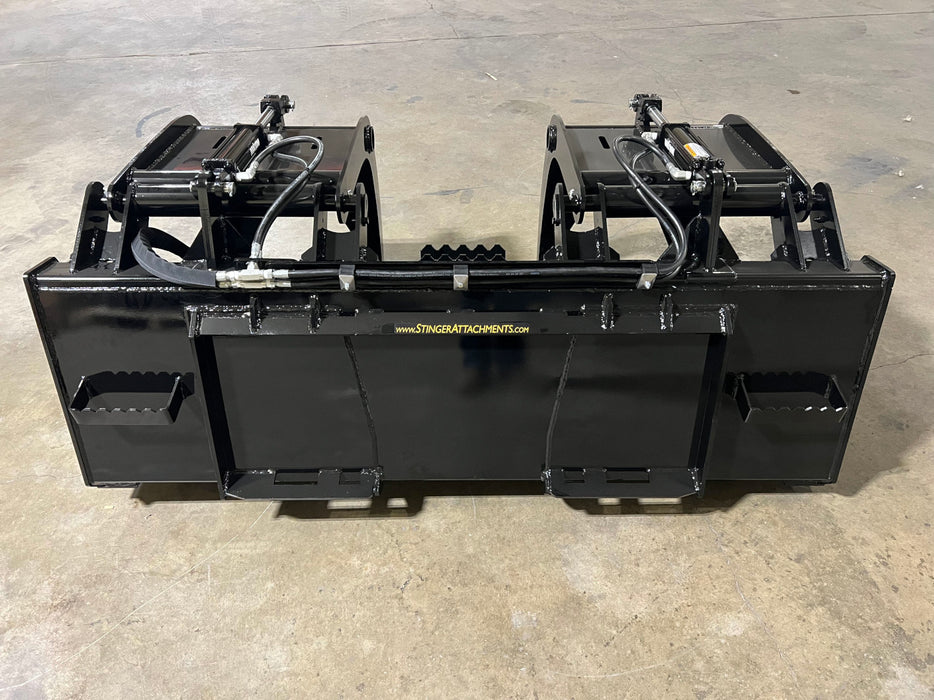

Fully Welded Brackets: Grapple brackets securely welded to the 4”x4” square tubing frame for maximum stability.
-
Greaseable 1” Pins: Easy maintenance ensures longer pivot life and smooth grapple operation.
-

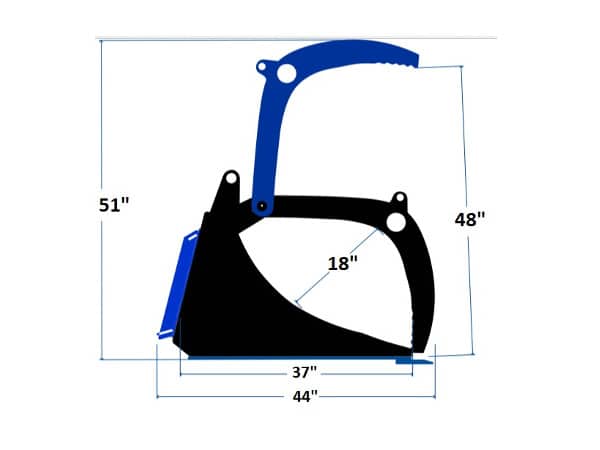

48” Grapple Opening: Large opening height accommodates bulky, irregular materials for easier handling.
Size and Weight Options
| Size | Approximate Base Weight |
|---|---|
| 60″ | 900lbs. |
| 66″ | 930lbs. |
| 72″ | 960lbs. |
| 78″ | 990lbs. |
| 84″ | 1030lbs. |
Applications
-
Demolition debris removal
-
Construction site cleanup
-
Disaster recovery and remediation
-
Farming and ranching scrap and log handling
-
Material sorting and transport
Why Choose the DG Series Demolition Grapple Bucket?
If you’re looking for a heavy-duty grapple bucket that can take on the most demanding jobs without compromising durability or operator control, the DG Series is the perfect choice. With its combination of reinforced steel construction, smart design features, and large grapple opening, this bucket is built to deliver efficient, reliable performance — project after project.
