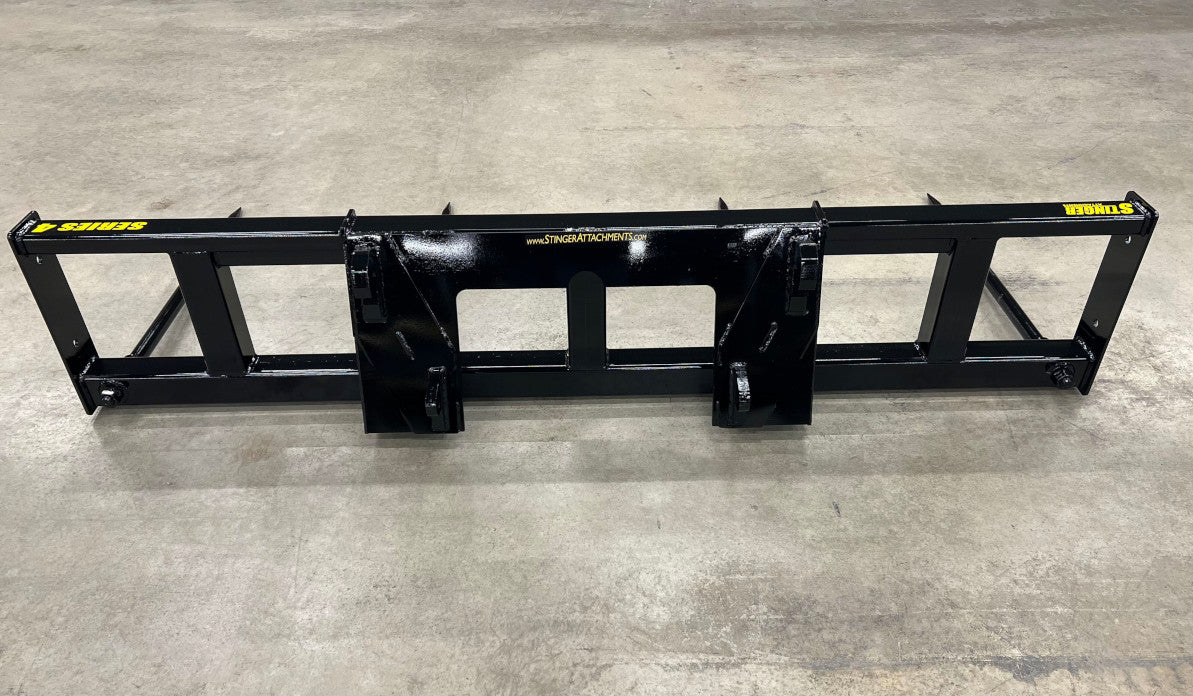

Series 4 Bale Spear – Heavy-Duty Dual Bale Handling for Large Ag Producers
Move Two Large Round Bales at Once with a Robust 14,000lbs. Capacity

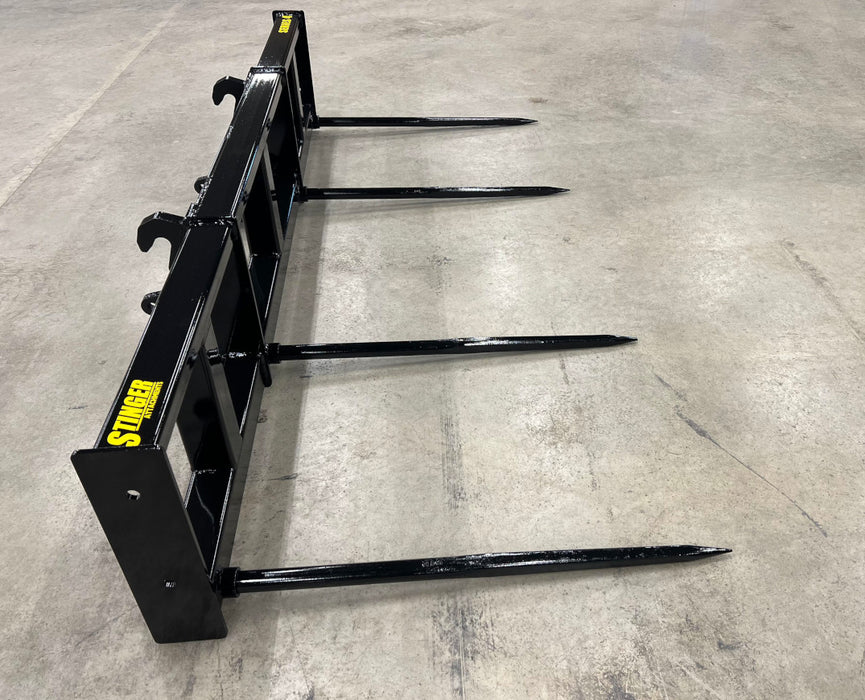

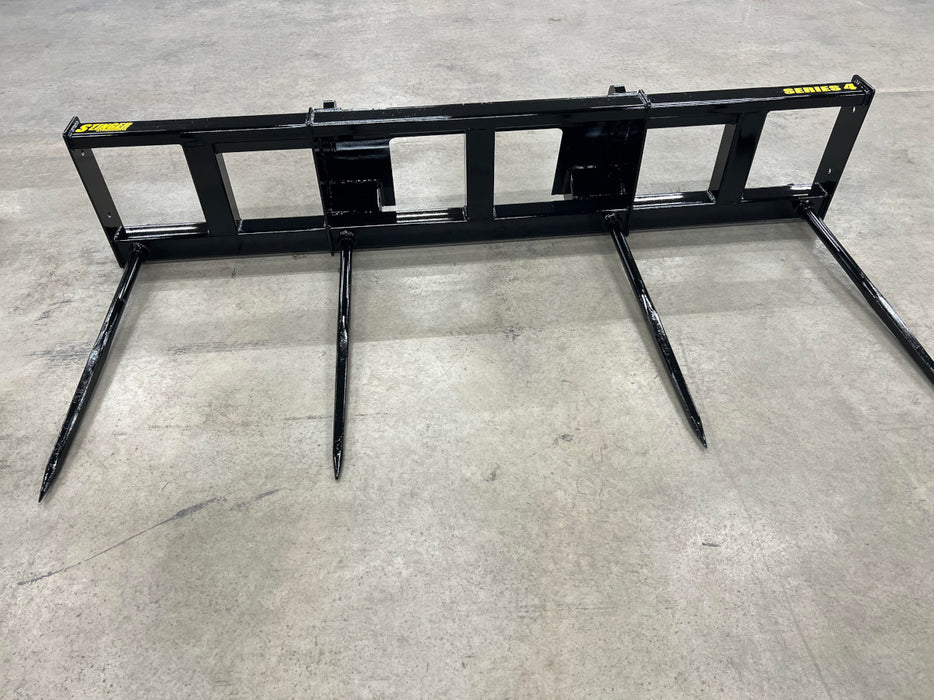

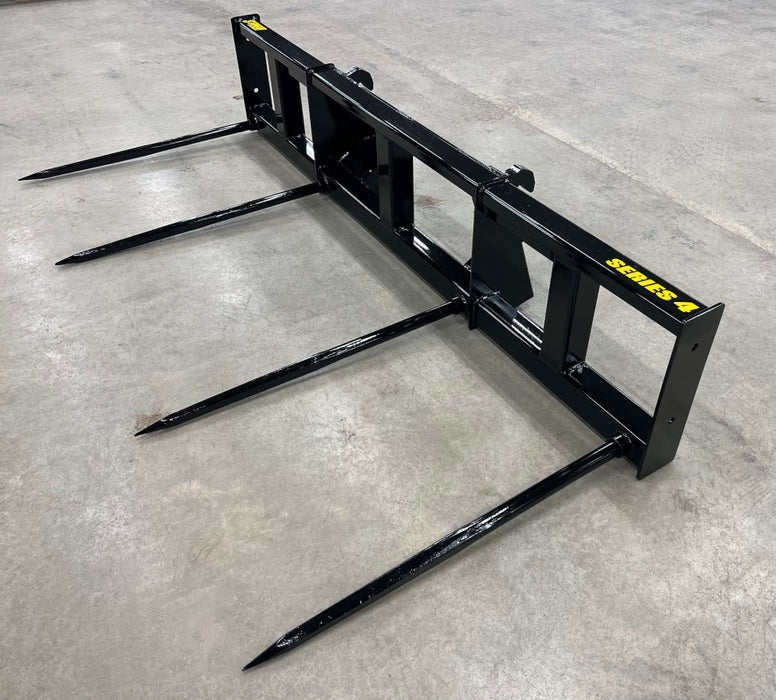

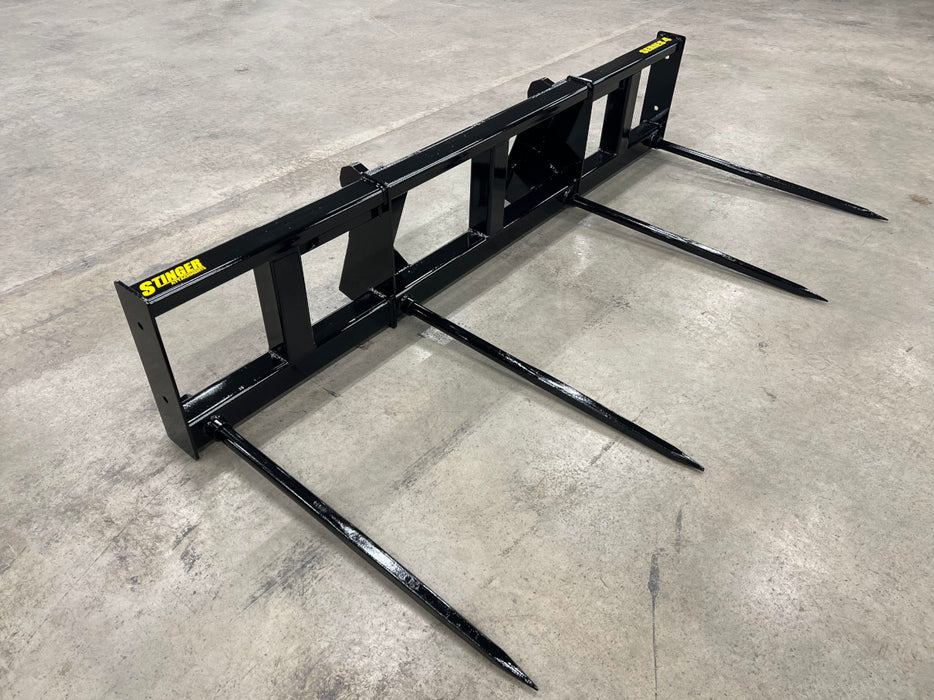

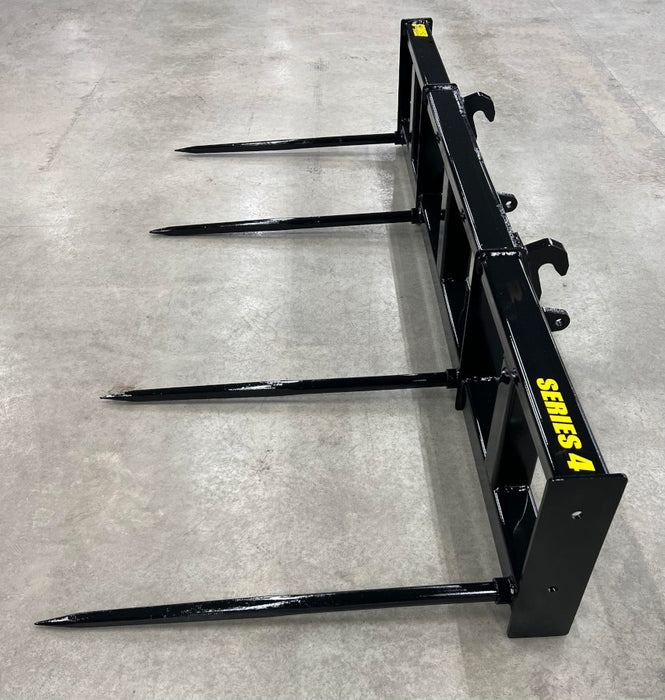

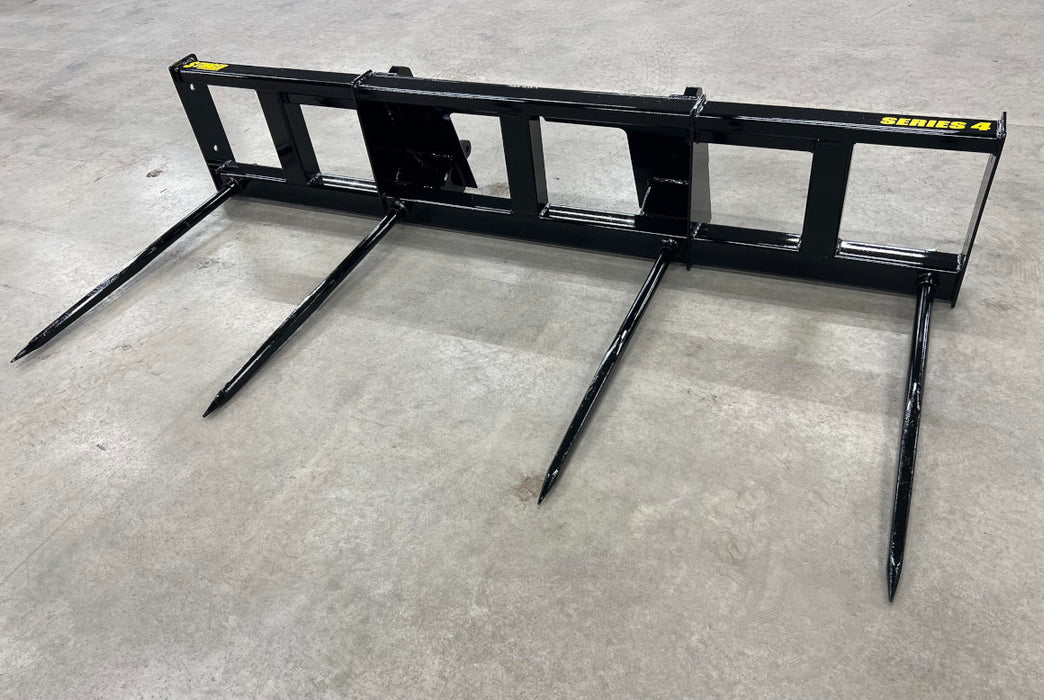

The Series 4 Bale Spear is engineered for large agricultural producers who need to move two large round bales simultaneously. Featuring a sturdy four-tine design, this bale spear offers an impressive 14,000lbs. carry capacity. The outermost tines are spaced 100” apart on center, with two additional tines evenly placed between them to provide superior stability and support. Multiple tine lengths are available, including the standard 49” spear, all designed with heavy-duty construction and replaceable tines for long-lasting durability.
Specifications
-
70-degree back angle for optimal bale handling
-
4x2x1/4” top support tube
-
4x4x1/4” bottom tube
-
3/8” Grade 50 side plates
Features
-

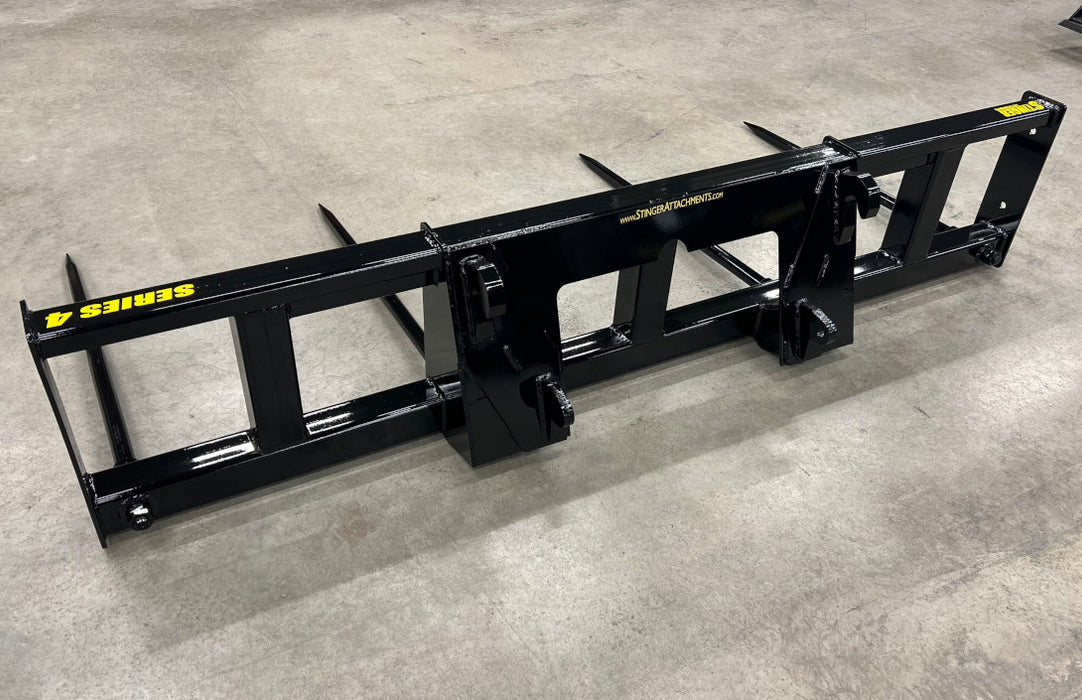

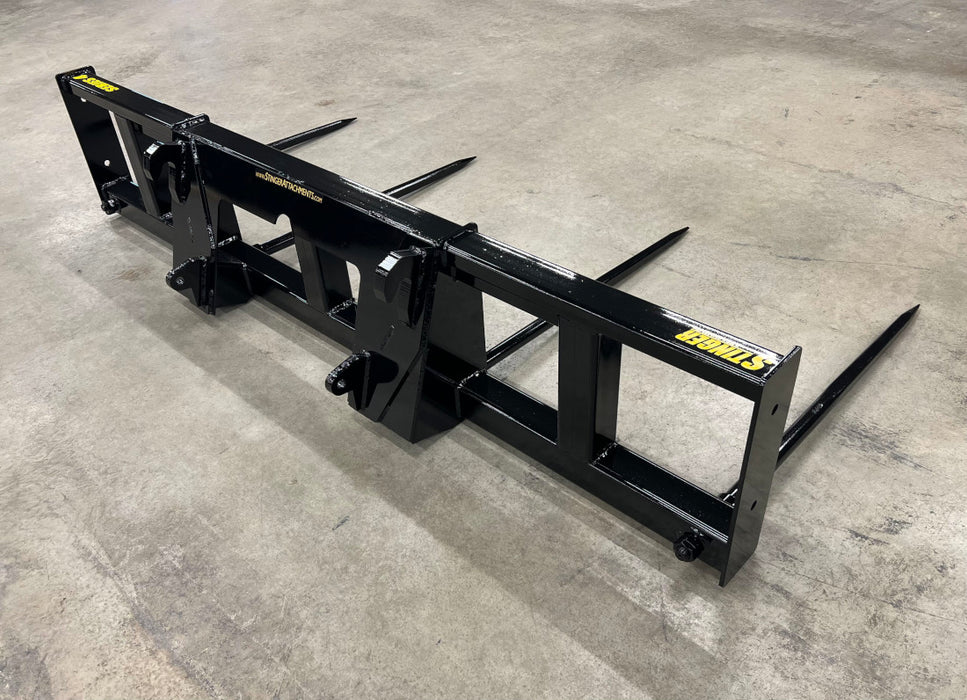

Skid-steer hookup, modifiable to fit most machines
-
49” usable spear length (43.5” effective)
-
Replaceable tines with secure double nut fastening
-
Safety step for easy, safe access
