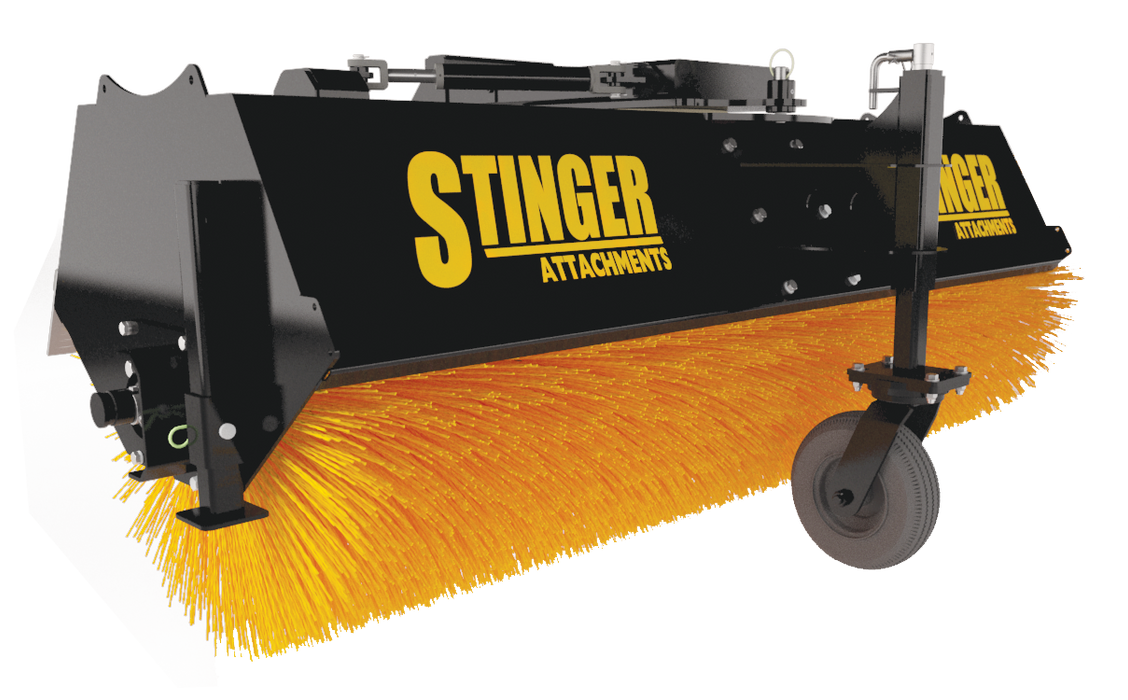

Stinger Attachments Skid Steer Angle Broom
Durable, Versatile Sweeping Solution for Commercial and Industrial Applications
If you need a reliable broom for your skid steer, Titan Attachment Pro offers the perfect angle broom in three versatile sizes: 72", 84", and 96" widths. Designed for heavy-duty use, it’s ideal for commercial, construction, and municipal operations such as warehouses, parking lots, machine sheds, job sites, and dust containment areas.
Specifications:
| Model | 72″ | 84″ | 96″ |
|---|---|---|---|
| Broom Width – Angled at 15° | 69.55″ | 81.14″ | 92.73″ |
| Broom Width – Angled at 30° | 62.35″ | 72.75″ | 83.14″ |
| Width (A) | 82″ | 94″ | 106″ |
| Depth (B) | 77″ | 77″ | 77″ |
| Height (C) | 47″ | 47″ | 47″ |
| Weight | 1063lbs. | 1115lbs. | 1182lbs. |
| Max Flow (DO NOT EXCEED) | 25gpm | 25gpm | 25gpm |
| Max Pressure (DO NOT EXCEED) | 3500psi | 3500psi | 3500psi |
Features:
-
Available with manual or hydraulic slew, allowing 30° rotation either side
-
Replaceable poly-wire wheels for long-lasting performance
-
Optional heavy-duty front caster wheel for smooth operation
-
Fold-away stands for easy parking and storage
-
Quick attach mount for fast installation on skid steers
-
Durable powder-coated finish resists corrosion and wear
-
Floating design for superior handling on uneven surfaces
-
Equipped with reliable Eaton motor
-
Quick change core and brush wafers for simple maintenance
Sweeps & Collects
Sweeps and collects all kinds of debris in factories, car parks, road construction, stockyards, shipping containers and more.

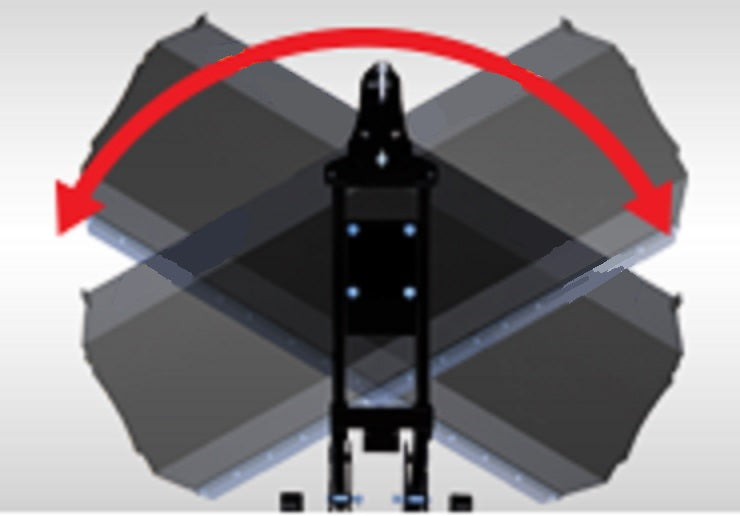

Bi-Directional Slew
Manual or hydraulic slew in both directions up to 30°
Optional Caster Wheel
Heavy-duty adjustable front caster wheel
